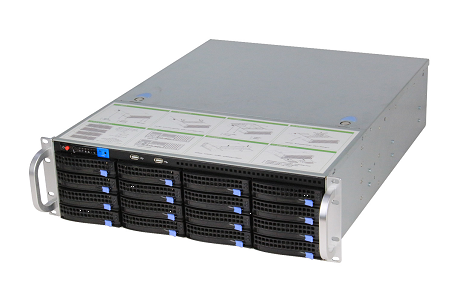

NVSS8X16Pro Series |
|
Main Processor |
Intel core i7-8700 CPU |
|
Operating System |
64bit Linux OS |
|
Memory |
32GB |
|
Face capture IPC |
Max 32 channels input |
|
Max face list |
Max 200,000 face list |
|
Face comparison |
8000,000 times per second |
|
Face feature deal |
With GT1050 GPU card, 28 pcs face picture per second |
|
Bandwidth |
Max Input bandwidth: 256Mbps, Max output bandwidth: 256Mbps |
|
Preview |
2ch@8MP / 5MP or 4ch@4MP / 3MP or 9ch@1080P/720P/D1 real time preview |
|
Playback |
2ch@8MP / 5MP or 4ch@4MP / 3MP or 9ch@1080P |
|
Audio |
1ch audio & 1ch Mic in, 1ch audio out |
|
Recording Mode |
Manual, Schedule(Continuous, Motion detection, Sensor Alarm), Stop |
|
Alarm Recording |
Motion detection, External alarm |
|
Backup Mode |
Network download / USB HDD / Mobile DVD |
|
Video Output |
1ch VGA + 1ch HDMI+1ch DP, HDMI output support 4K |
|
Multi-split Display |
Main:1/4/6/9/13/16/20/25/33/36/49/64/81/100/121/144 split, sub: 1/4/9/16 split. |
|
HDMI/VGA Output |
3840*2160(HDMI) / 1920*1080 / 1680*1050 / 1440*900 / 1280*1024 / 1024*768 |
|
Interface |
2 RJ-45 ports(1000M) |
|
Power Supply |
100-240VAC, 47-63Hz,800W Industrial power; -R: 800W Redundant industrial power |
|
Hard Disk |
16 pcs HDD, Max.16TB for each, hot-swap Support, Raid5 and Raid 6 Support |
|
USB |
6 USB ports |
|
Work Environment |
Temperature: 0˚C~60˚C; Humidity: 10%~80% ( non-condensation) |
|
Dimension |
3U case |
