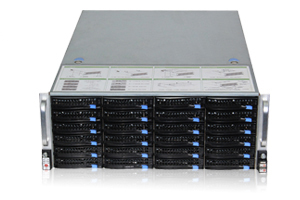

NVSS8X24 Series |
|
Main Processor |
Intel core i7 CPU |
|
Operating System |
64bit Linux OS |
|
Memory |
16GB |
|
Bandwidth |
512Mbps |
|
Recording |
256ch@8MP or 4MP or 1080P |
|
Preview |
16ch@8MP or 28ch@4MP or 49ch@1080P or 128ch@D1 |
|
Playback |
16ch@8MP or 16ch@4MP or 16ch@1080P & 720P |
|
Audio |
1ch audio & 1ch Mic in, 1ch audio out |
|
Recording Mode |
Manual, Schedule(Continuous, Motion detection, Sensor Alarm), Stop |
|
Alarm Recording |
Motion detection, External alarm |
|
Backup Mode |
Network download, USB HDD, Mobile DVD |
|
Video Output |
1ch VGA + 2ch HDMI interface; VGA+HDMI or 2 HDMI output, HDMI support 4K output |
|
Multi-screen Display |
Main:1, 4, 6, 9, 13, 16, 20, 25, 28, 33, 36, 40, 49, 64, 81, 100, 121, 144 split; sub:1, 4, 6, 9, 13, 16 split. |
|
HDMI/VGA Output |
3840*2160(HDMI) or 1920*1080 or 1680*1050 or 1440*900 or 1280*1024 or 1024*768 |
|
Interface |
2 RJ-45 ports(1000M) |
|
Power Supply |
With 800W Power(100-240VAC); - R Model with 800W Redundancy Power(100-240VAC) |
|
Hard Disk |
24 SATA, Max. 10TB for each; Independent HDD rack, support hot swap, RAID storage |
|
USB |
6 USB ports |
|
Working Environment |
Temperature: 0˚C~60˚C; Humidity: 10%~80% ( non-condensation) |
|
Dimension |
650mm×440mm×176mm (W×D×H); 4U case |
|
Weight |
28Kg |
|
