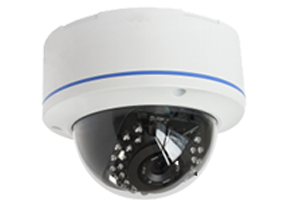

NVJ562FP-JC

  • 1/1.8 inch 2MP CMOS, SONY high performance image sensor
    ● Support to capture face under the light complex conditions
    ● Support face tracking, face exposure mode, face auto filter
    ●  Support to detect max.32 faces on a frame
    ● Support DWDR, 3D DNR
    ● Support ONVIF protocol
    ● 3.6-11mm motorized VF lens



1/1.8 inch 2MP CMOS, SONY high performance image sensor
● Support to capture face under the light complex conditions
● Support face tracking, face exposure mode, face auto filter
●  Support to detect max.32 faces on a frame
● Support DWDR, 3D DNR
● Support ONVIF protocol
● 3.6-11mm motorized VF lens

Face Capture IP Camera datasheet
Image sensor 1/1.8" 2.0MP Sony CMOS
Resolution 1920(H)x1080(V)
Scanning mode progressive scanning
Electronic shutter 1/25s~1/10000s
Min. Illumination Color: 0.0001Lux@F1.2;B&W: 0.00001Lux@F1.2;
SNR ≥50dB(AGC OFF)
WDR range ＞80dB DWDR
Privacy cover up to 4 privacy cover zones
lens 3.6-11mm
Video compression H.265+/H.265/H.264/MJPEG
Resolution 1080P(1920×1080)/720P(1280×720) or D1(704×576)/VGA(640*480)/QVGA(320×240)
Frame rate 1-25（30）fps
Video Bit Rate 32KB ~16Mbps, VBR / CBR
Image setting adjust the brightness, contrast, saturation, sharpness, white balance; AWB (auto white balance), AGC (AGC), AE (automatic exposure control), AIC (automatic aperture correction); privacy zone occlusion; OSD stack; image rotation: 90 degrees / 270 degrees normal automatic, manual or automatic color to black and other switching mode
Audio compression G.711a/ G.711u/G.726
Audio interface Not support
Smart coding Support low bit rate, low delay, ROI region of interest enhancement encoding, support 4 ROI regions
Smart detection Support intelligent occlusion detection and intelligent defocus detection
Smart control Support intelligent control alarm opening, alarm closing, fault clearing, intelligent noise reduction
Intelligent analysis Face capture, face tracking and face automatic filtering
Image format captured picture using JEPG coding
sensitivity 0-10 adjustable, the lower the sensitivity, the higher the quality of the picture.
Detection zone setting support to select face recognition zone
Upload mode FTP upload
Network interface 1 RJ45 10M/100M
Network protocol IPv4, HTTP, TCP/IP, UDP, RTP, RTCP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP
Access standard Support latest ONVIF
Number of users Up to 8 users login at the same time
Mobile phone monitoring iPhone、iPad、Android
Case White aluminum alloy shell
Power supply DC12V 2A/ POE(802.3at)
Power consumption <15W
Working condition -30 C ~60 C, humidity less than 95% (no condensation)
Weather Proof IP66
IR range 6-10m
Dimension 185*185*155mm
weight 11009
Install Wall or ceiling
