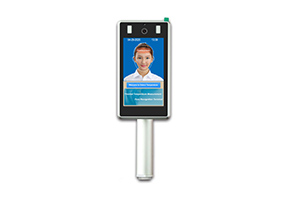

NVFM212D


  • Sony WDR 1/1.8"CMOS + Hisi chipset, embedded OS;

    Two million binocular camera + HDMI display
      Controllable shooting distance within 0.5-3 meters
    Support 20,000 face list library
    Support ID card identification and other IC card identification

FM datasheet
scanning method line-by-line scan
Minimum illumination 0.01Lux@(F1.2,AGC ON)
sensor type Sony WDR 1/1.8"CMOS
shutter 1/25s~1/10000s
Lens Determined by product form
Video compression standard H.264/MJPEG
Video resolution 1920×1080、1280×720
Video frame rate 25fps
Video stream 512KB~4Mbps;Code stream adjustable
Image setting Exposure (shutter), gain, contrast, saturation, brightness
Network Interface One RJ45 10M/100M Adaptive Ethernet
Network protocol IPv4,TCP/IP,NTP,FTP,HTTP , RTSP
Access standard Support for the latest Onvif protocol
Number of supported users Supports up to 4 simultaneous users
Local storage Maximum support for 32G Micro SD card
RS485 Yes
Alarm input/output 2 external trigger inputs, 1 switch signal output
Power Supply DC 12V2A
Power Consumption <=15W
Working temperature -30℃~﹢70℃
Working humidity 20%—90%
