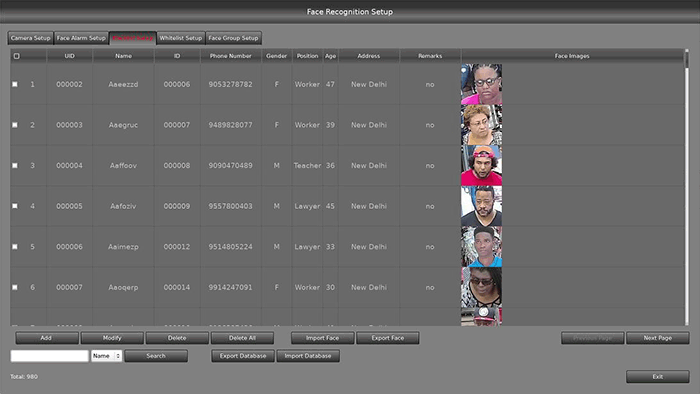

User can add, modify, delete face pictures in black / white list here, there are 6 kind of ways to add face pictures to face database. such as, add faces manually, import faces automatically, import face database, add a captured face from live view or playback, also white list supports to add strangers' face automatically.
● Add faces with mutiple ways
● Modify a face information
● Delete a certain face or all faces
● Search a certain face by ID or name
● Export / import face pictures with a specific name format
● Export / import face database file

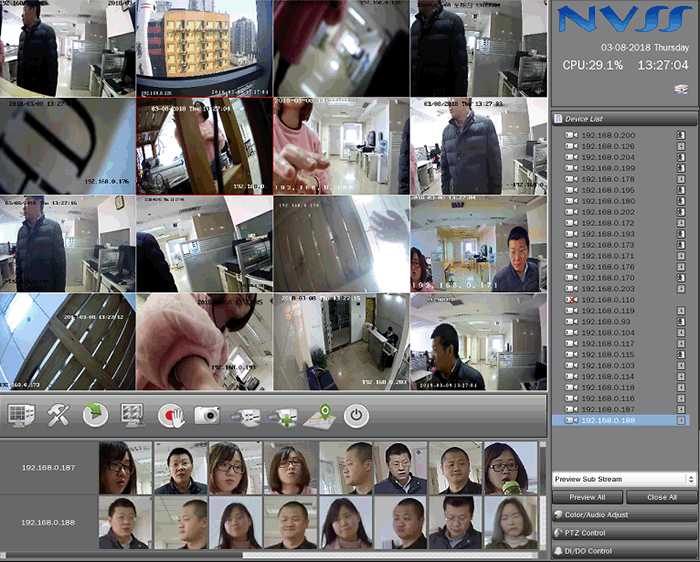

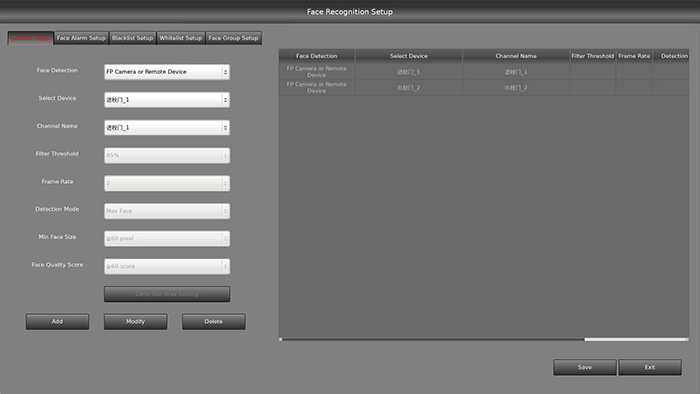

User needs to add cameras in face recognition function to capture faces firstly. It can be a normal camera or face
capture camera. NVSS supports to set face detection zone, filter threshold, detection
frame per second and face detection mode for and quility score of face each camera . Then it will show face
pictures of corresponding camera on the bottom of live view interface.
Face alarm
Face alarm includes face matching alarm and linkage alarm.

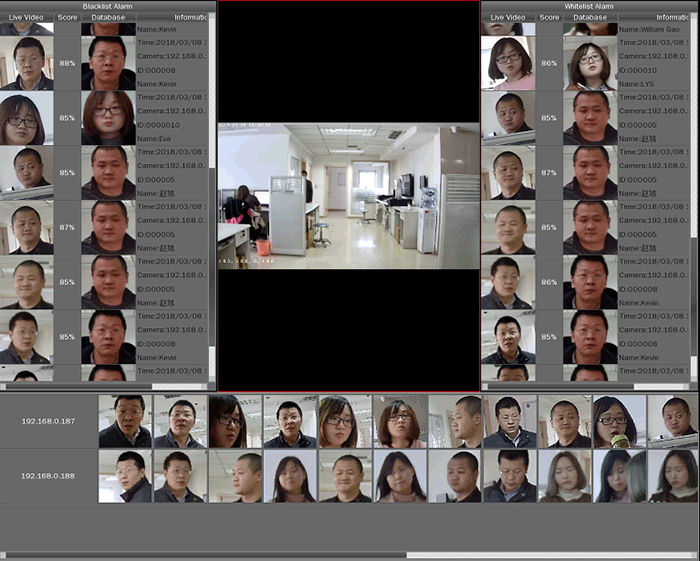

Regarding face matching alarm, user needs to enable it firstly, the captured face has a
higher similarity than the one you set in Face Alarm Setup when comparing face in black
list / white list, it will show the information about this face on live view.

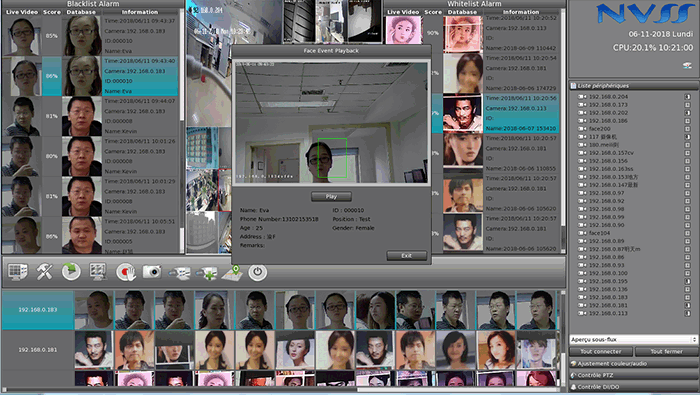

Double click on the matched face, it can show detail information about this face, also user can display a short video.
Regarding linkage alarm, user needs to enable for each camera firstly, then set it to play audio,
send email, push message to APP, write informaton to face statistics or trigger alarm to a camera when there is a face alarm from black / white list or strangers.

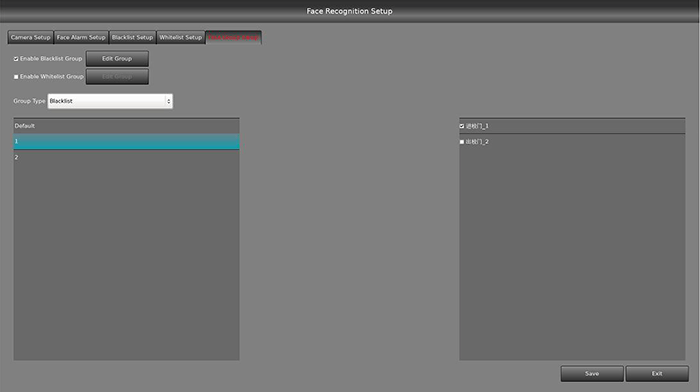

This function is used to group face list, user can set different group to be linkaged with different face capture IPC, so it will have different access right for the faces in different groups

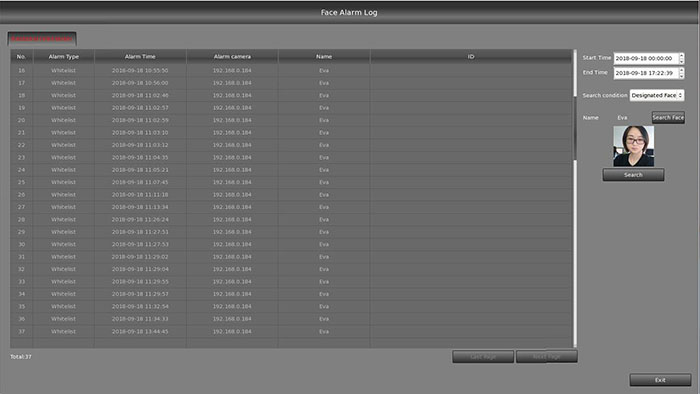

Face alarm log
It is a function for user to search all face alarm information of a exist person in black / white list, also support to search with alarm type and channel.

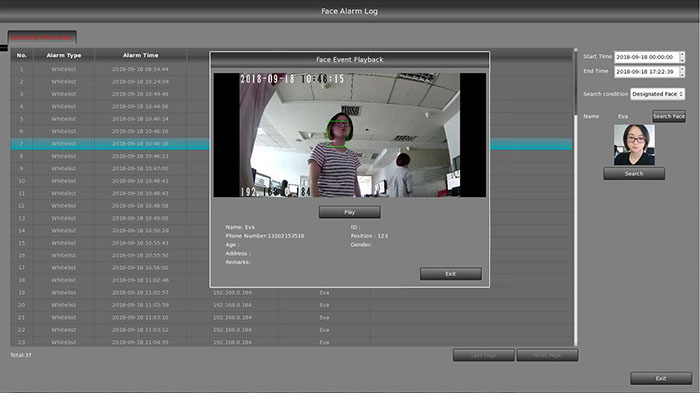

Double click on information of face statistics, it can show detail information about this face, also user can display a short video.

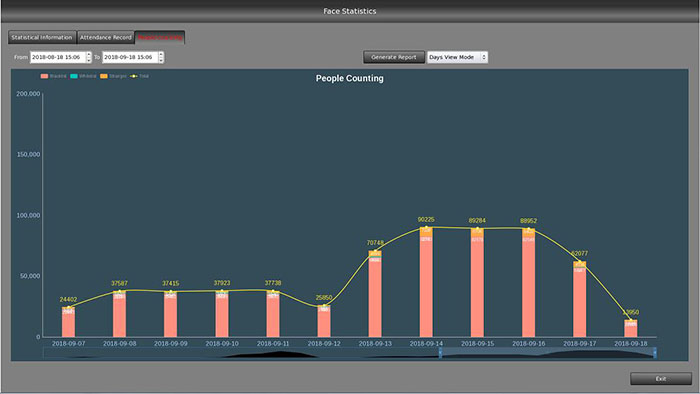

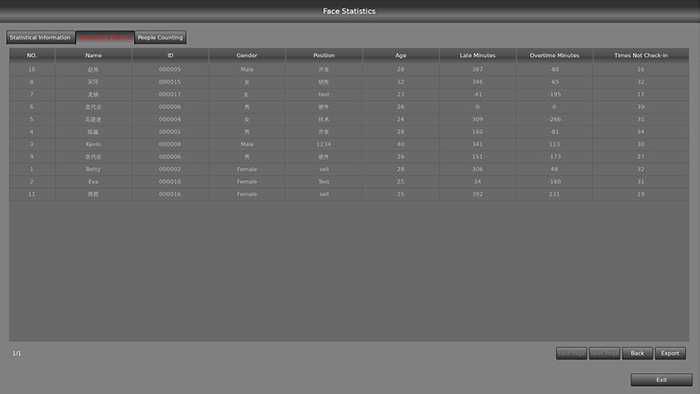

This function is always used to do face attendance system and human traffic statistics system, User can easily to know the specific time when a face appears, also generate face attendance report and people counting charts. It is convienent for user to export face attendance report.

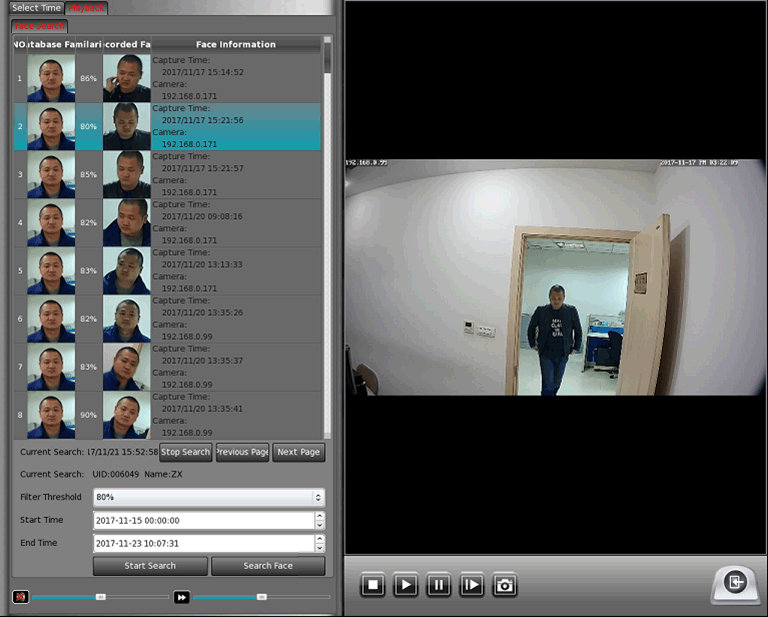

It is a function for user to playback video of faces, user can search all the faces of a certain
Person with name or UID, it will show time, camera name, similarity and face pictures, you
can double click a face to play a short video. Also right click on face picture, you can export
a or all faces to USB, search similar faces with current face or add this face to black / white list.
NVSS pro with high precision face recognition arithmetic, >97% matching exact with 10000+ face list, Nvidia 1030 display card's face feature pick-up ability: 16 pcs per second; support 999999 face list
Intel Celeron CPU with NVIDIA 1030 GPU card, suggest to build a face database with no more than 5000 pcs faces, support max. 8 pcs face capture IPC
Intel i3 CPU with NVIDIA 1030 GPU card, suggest to build a face database with no more than 20000 pcs faces, support max. 16 pcs face capture IPC
Intel i7 CPU with NVIDIA 1030 GPU card, suggest to build a face database with no more than 80000 pcs faces, support max. 32 pcs face capture IPC
